Weight Process Packing Controller High Accuracy Optional Ethernet Port
Weight Process Packing Controller, for 25-50kg Open Mouth Bag Fertilizer Quantitative Packing Scales

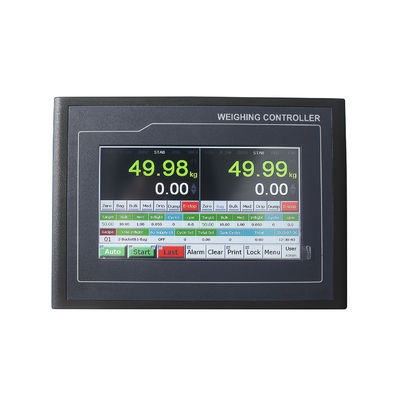

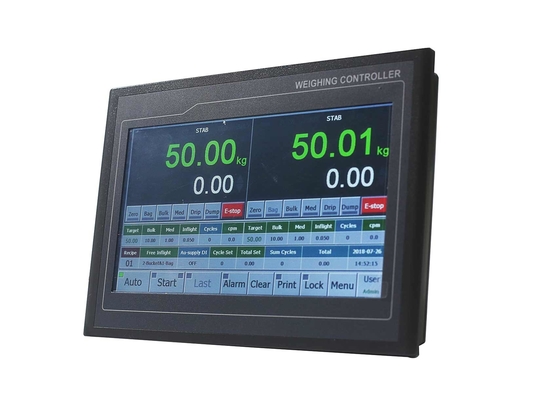

7”Touch Screen
Outline Size: 226.5×163×56mm [W×H×D].
Window Size: 153.6×86.64mm [W×H].
Box Body Size: 213×150mm [W×H].
Panel Cut-out Size: 215×152mm [W×H].
Weight: Approx. 0.72kg.
10.2” Touch Screen
Outline Size: 274×193×56mm [W×H×D].
Window Size: 220.8×132.9mm [W×H].
Box Body Size: 259×178 [W×H].
Panel Cut-out Size: 261×180mm [W×H].
Weight: Approx. 1.2kg.
Technical Specifications
1. Executing Standards
2. PRC GB/T 7724-2008.
3. PRC JJG 649-2016.
4. OMIL R76-1: 2006International Recommendation.
5. Accuracy Grade:Ⅲ.
6. Number of Verification Scale Interval: n=3000.
7. Structure&Configuration
8. 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
9. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
10. 16-bit Color screen with 800×480[7”] or 1024×600[10.2”] pixel and LED backlight.

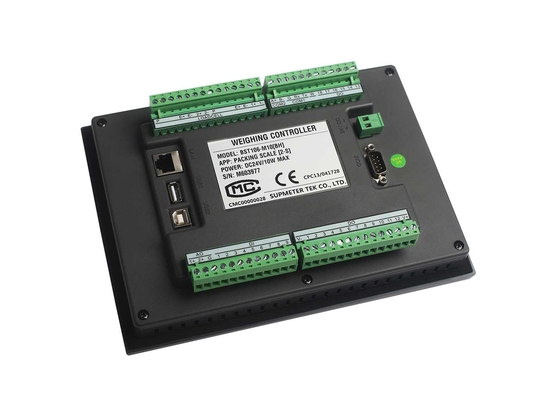

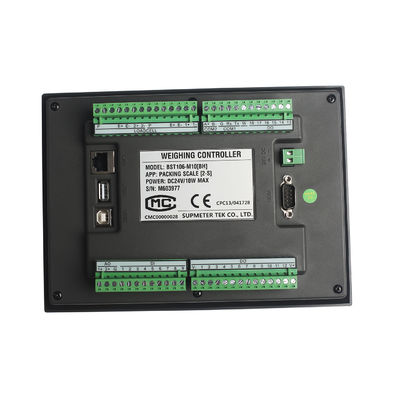

Digital Communication Interface
1. COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
2. COM[RS232] for connecting RS232 Serial Printer with Baud Rate ‘9600bps’, Parity Check ‘None’, 8 Data Bits and 1 Stop Bit.
3. USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
4. LAN: Optional Ethernet port.
5. The Batch Records can be printed automatically.
6. Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.

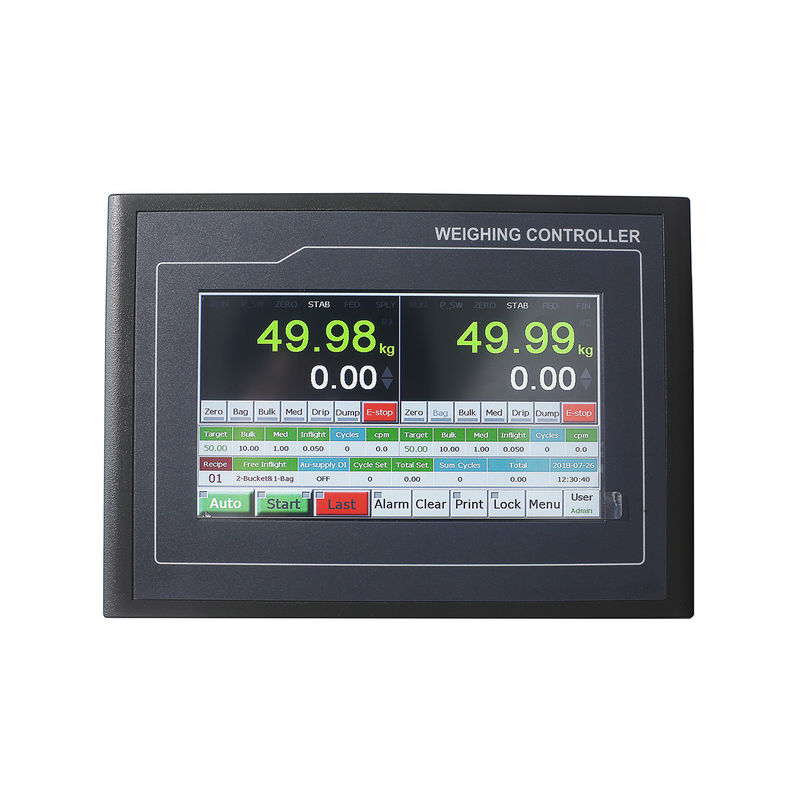

Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【Stop】 |
Normal Stop [Last Batch]. Stop after the present batch finished. |
Flashing Red. | |
| 【E-stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Print】 |
Report Print:
|
||
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing green. | |
| 【Bag】 | Bag-clamp/release Request. |
Green: Bag-clamping state. Grey: Bag-releasing state. |
|
| 【Bulk】 | Manual Start/Stop Bulk Feed. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Feed. | ||
| 【Drip】 | Manual Start/Stop Dribble Feed. | ||
| 【Dump】 | Manual Start/Stop Dumping. | ||
| 【Mat.】 | Manual Start/Stop Supplying Materials into Feeding Bin. | Flashing green. | |
| 【Clear】 | Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed. |
Engineer Administrator |
Weight Process Packing Controller, for 25-50kg Open Mouth Bag Fertilizer Quantitative Packing Scales
